UM08A

DIGI Microscope

UM08A is suitable to speedy inspection in the production line, delivers 2MP image at 60 Hz.
The continuous Auto-Focus function is really helpful for middle inspection.

ViTiny UM08A is suitable to speedy inspection in the production line, deliver 2M pixels image at 60 frame rate. The continuous Auto-Focus function is really helpful for middle inspection.

Connect to Full HD monitor with high def cable, may display 1080P supper high quality. It controls focus, zoom in, white balance, exposure value and luminance through IR remote controller, not necessary to touch the device.

In case, the environmental light is variable. The SHUTTER function can control the amount of light to keep clear image, if the environment is worse for inspection, the other DEFOG function can enhance the contrast in the specific area.

Moreover, UM08A apply WDR image process, have noise reduction and image stabilization system which let the inspected object as stable as still picture. There is more than said like mirror function, 2 area partially image enlarge, detect moving object etc.

All of them is to help USER's efficiency work.



  1. Magnification : 13x–140x on 24" monitor

  2. Working Distance : 22mm–214 mm

  3. CMOS Sensor : 2M Pixels

  4. Interface of Output : 1080P @ 60Hz
  5. Focus System : IR Remote Control, Alternative Auto and Manual Focus

  6. Light : Built-in 30 PCS of Wide Angle LED light, allow to adjust the brightness
  7. Device Dimension : Ø106 x 152(H) mm

  8. Power Supply : DC 5V/2A , Cable Length : 180 cm



Item Q'ty Item Q'ty
DIGI Microscope (UM08A) 1 White Balance Card 1
HDMI Cable 1 IR Remote Control 1
Power Adaptor 1 User's Guide 1

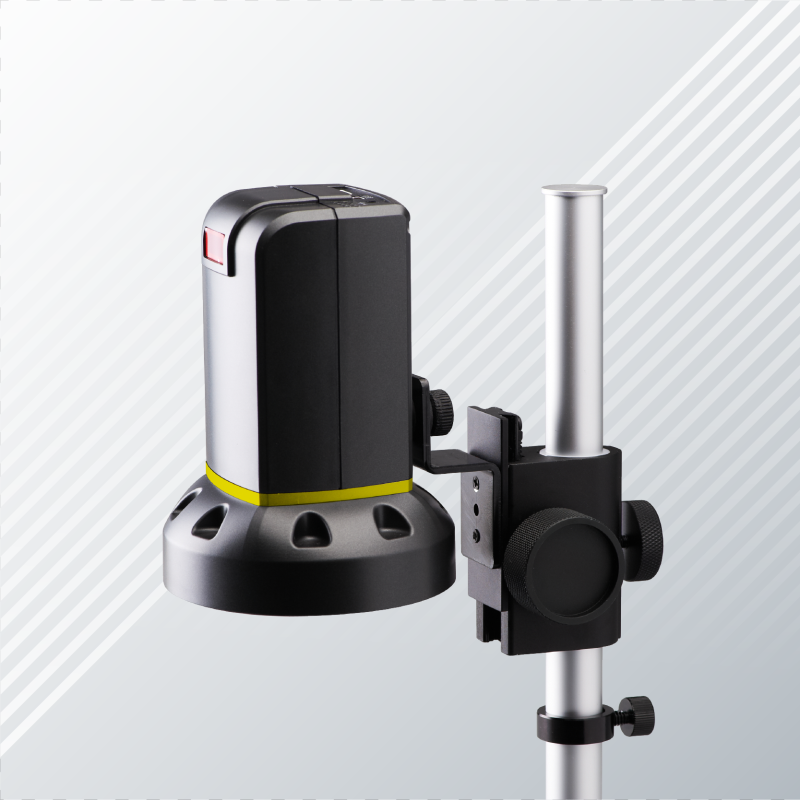

Stand S107 1 Object Lens 4X 1
Stand assemble guide 1 Object Lens 10X Optional
