UM30D-CSZ064

Digitales Mikroskop

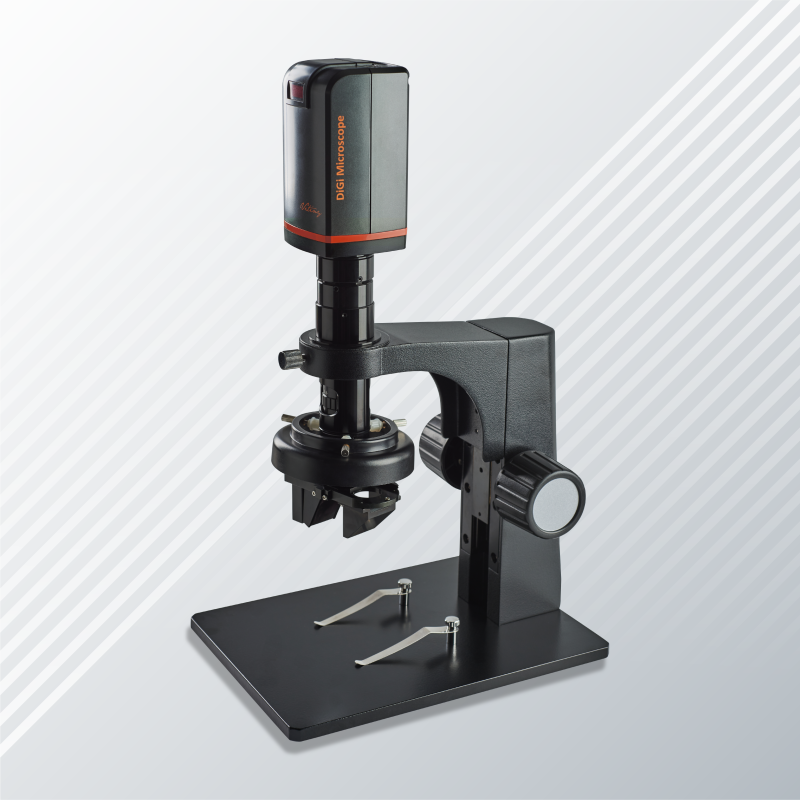

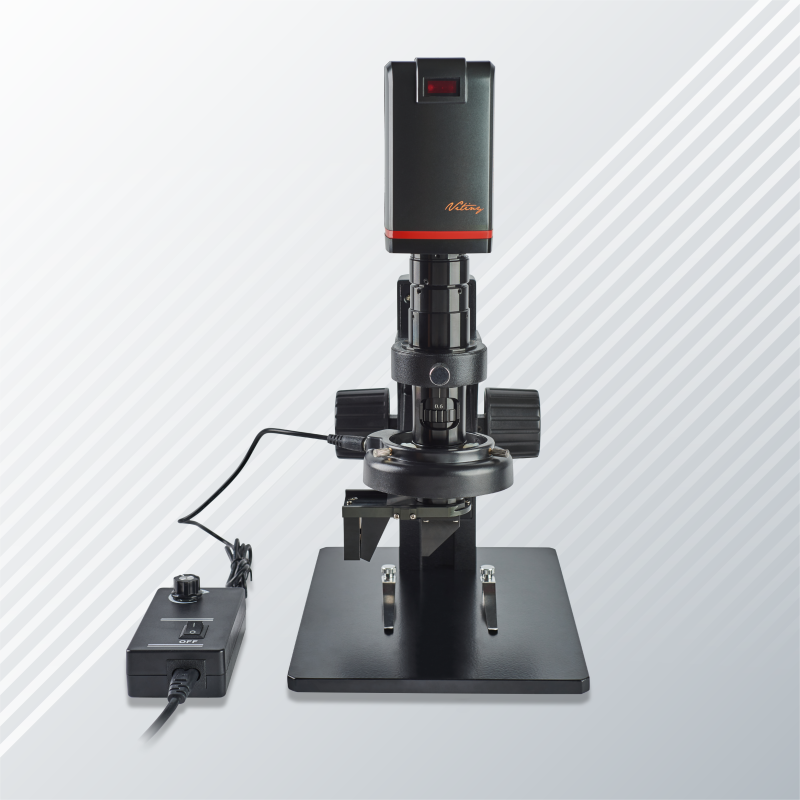

UM30D-CSZ064 digital microscope, equipped with high-definition high-quality 4K autofocus camera module, is directly connected to the screen and plug-and-play, which is convenient for quick inspection on the production line. Press the snapshot button to record in real time. It can also be connected to a computer via a USB2.0 transmission cable to take photos and measurements.

Vitiny UM30D-CSZ064 digital microscope, equipped with high-definition high-quality 4K autofocus camera module, is directly connected to the screen and plug-and-play, which is convenient for quick inspection on the production line. Press the snapshot button to record in real time. It can also be connected to a computer via a USB2.0 transmission cable to take photos and measurements.

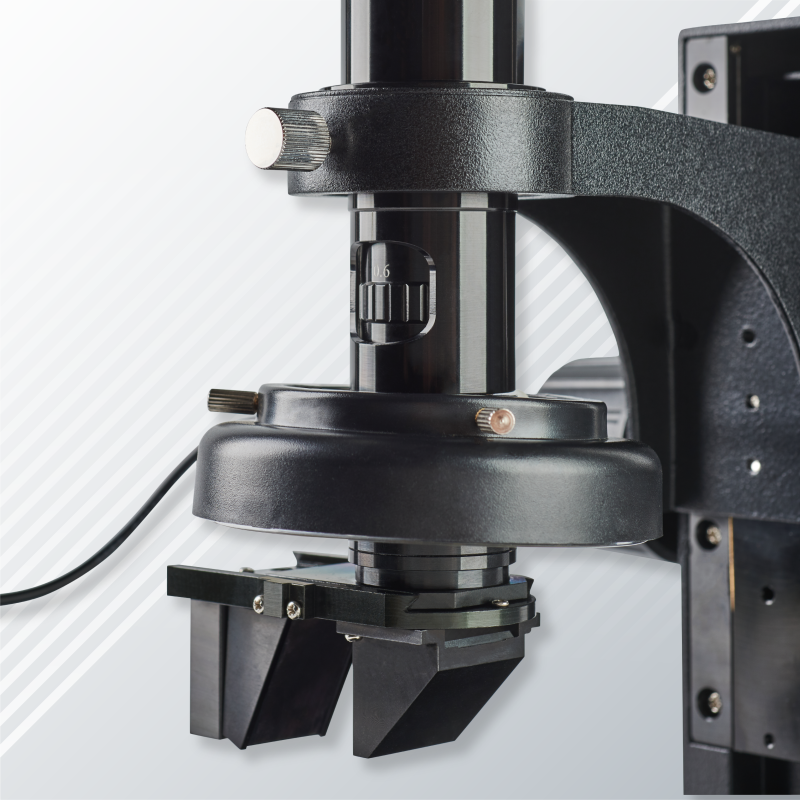

UM30D-CSZ064 has a special lens design that is different from other CSZ064 models. In addition to top-down observation, it can also be observed from the side. The lens optical machine can easily switch between 2D & 3D for 360-degree rapid rotation inspection and retain the original viewing area. This 2D/3D inspection system is very efficient for PCB solder side inspection and component internal quality inspection.

The manually operated rotation angle position allows for more intuitive and free observation than other electric rotating lens, and is also more economical in price.



  1. Magnification : 22x - 147x on 24" Monitor
  2. Working Distance : 117mm (2D) / 30mm (3D)
  3. Field of View : 23.7 – 3.6mm
  4. CMOS Sensor : 4k Ultra HD Resolution
  5. Interface of Output : 1080P Full HD & USB 2.0 & Micro SD Card Slot
  6. Focus System : IR Remote Control, Alternative Auto and Manual Focus
  7. Micro SD Card Support up to 128GB : Capture JPG
  8. Light : LED Ring Light, Brightness Adjustable
  9. C-Mount 2D/3D Lens
  10. Device Dimension : 66(W) x 68(D) x 310(H) mm
  11. Power Supply : DC 5V/2A , Cable Length : 180 cm

                      1. Software Function : Auto-Calibration, 2D Measurement, Image Comparison, etc.
                      2. Software Platform : Windows (7, 8, 10, 11), Mac & Android
                      3. Device Platform : Windows, Mac & Android

Item Q'ty Item Q'ty
DIGI Mikroskop (UM30) 1 Weißabgleichskarte 1
HDMI Kabel 1 IR Fernbedienung 1
USB Mini Kabel 1 Benutzerhandbuch 1
Netzteil 1 Kalibrator 1
Adapterkabel 1 D-CSZ064 Objektiv 1

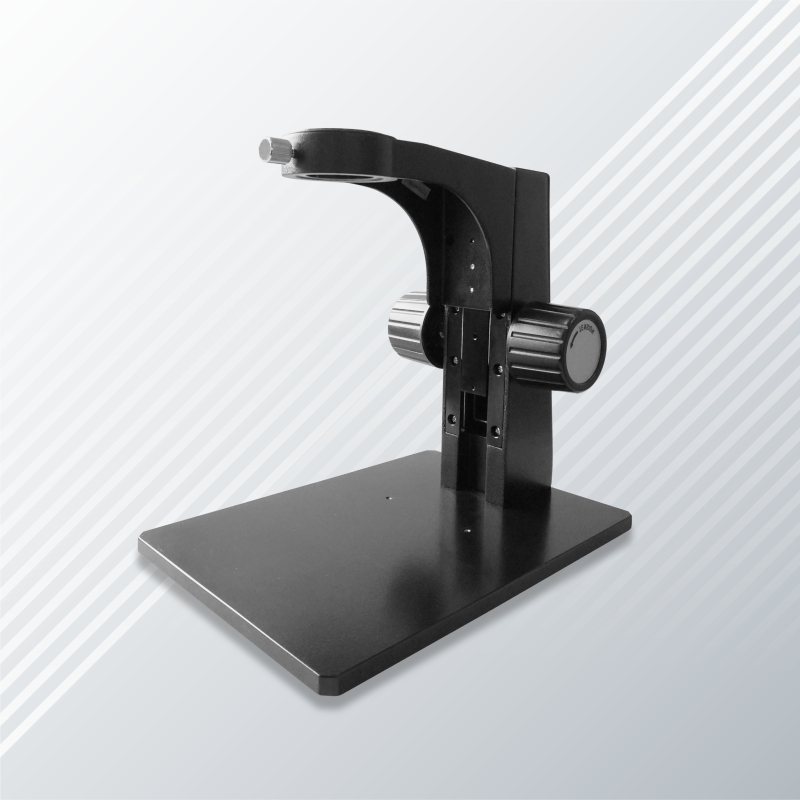

Ständer S115 1 LED Ringlicht 1
Montageanleitung für den Ständer 1 Micro SD Karte Optional
